Product Description
- With M5 clamp and Built-in Lithium Battery
- supports online upgrade and can update the new key data in time.

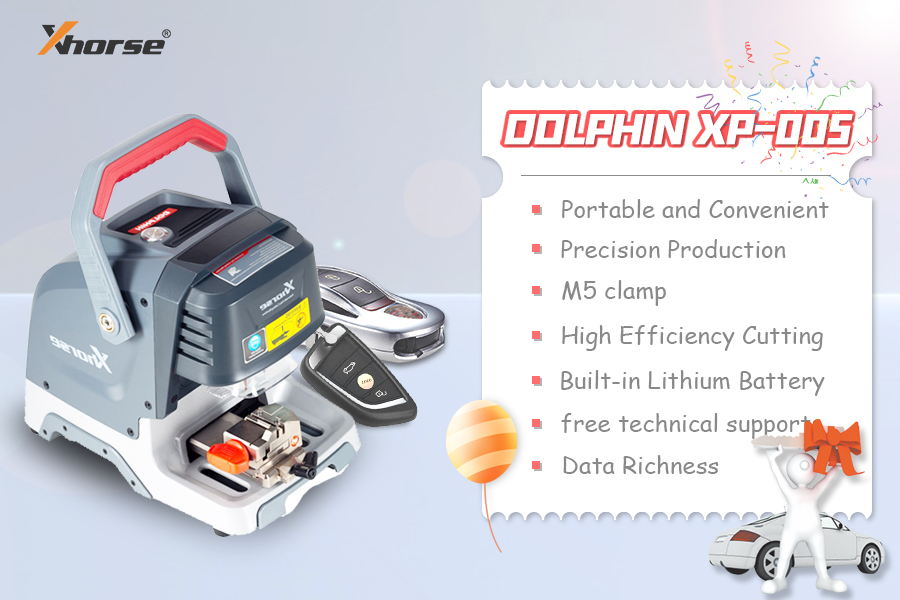

Xhorse Dolphin XP-005 XP005 XP0501EN New Version Key Cutting Machine Xhorse XP-005 is the third generation key CNC machine, it is often used for duplicating automobile mechanical keys, changing key bitting, and solutions when all keys are lost. As a portable CNC machine, it is preferred by locksmiths to take out for work by car. Moreover, Xhorse XP-005 supports online upgrade and can update the new key data in time. Xhorse XP-005 new version is with M5 clamp.
Xhorse Dolphin XP-005 New Version Features: M5 Clamp
M5 clamp can perfectly replace the M1 and M2 clamps. Some keys are easier to hold with the M5 clamp than with the M1 or M2 clamp. For cars like the new Honda Civic, if you use the M1 and M2 clamps, you may not be able to cut at the root, but the M5 clamp can. Because the place where the M1 clamp fixes the embryo is blocked a little (The key embryo is too short, but the teeth are too long, and the embryo cannot be fully extended).
M5 clamp supports 4 track external, 2 track external, 4 track internal, Channel track. M5 clamp has two sides of A and B. Users can turn the clamp surface to cut according to cutting needs. There is no need to repeated install and uninstall to replace different clamps.
It can also be used with special fixtures to cut special Ford Citroen keys. It supports the connection of photo-taking, tooth-reading and optical imaging equipment. Non-conductor keys (plastic keys) can be cut.
Attractive appearance, full of technology, portable design, compact structure, small body leading the industry
Precision Production
All aluminum body structure, Manufactured by Germany-made DMG CNC machine
Intelligent Control with Smart APP
Provide powerful free App, support multi-language, support mobile phone, tablet computer and other intelligent terminal control, easy for operations.
Bluetooth Connection XP-005 can be connected to a mobile phone or tablet computer through Bluetooth for operation, and can also be used with key tool max and tablet computer.
Data Richness
The built-in genuine key database is convenient for the tooth shape query when all keys are lost. Provide rich vehicle data, blank key data, the best tool of all key lost.
High Efficiency Cutting
Use American famous brushless motor and screw rod, high efficiency and stability, create high precision cutting quality.
LED light and Non-Slip lifting handle
The status indicator LED light is ideal for checking key cutting status clearly, and also ensuring the regular works in the dark.
Ergonomic design, comfortable and effortless.
Used to secure the machine in a fixed position and moving it with better control and pulling power.
The excellent key duplicator maintains stable performance even in extreme weather.
Free Upgrade
Provide free software upgrade service, software function and database.
Technical service
One year warranty, free technical support, online service to provide remote control support
Built-in Battery
The built-in lithium battery of the XP-005 machine can support rescue work for a long time without external power supply. The portable handle design and light body weight make it more convenient to carry.
Timely and Portable solutions Compact design, its net weight, only 13kg, much easier to provide users outdoor and roadside services.
Optional Cutter: 2.0mm Milling Cutter These three are included in the default package already, you can buy for backup too.
1.0mm Tracer Probe 1.5mm Milling Cutter 2.5mm Milling Cutter
Product Specifications: | Series | DOLPHIN Key Cutting Machine Series |
| Model | XP-005 |
| Working temperature | -10~50℃ |
| Working Humidity | 10%~90% |
| Input voltage | 12-24V |
| Battery capacity | 64.75w.h |
| Cutting power | 100W |
| Standby power | 15W |
| Motor Rotation Speed | 10000-13000RPM |
| Rated torque | 0.15N.m |
| USB Port | USB2.0 |
| Machine Dimension | 315*218*270mm |
Package Includes: 1pc x Condor Dolphin Machine Body
1pc x M5 Clamp
1pc x 1.5mm Cutter
1pc x 2.5mm Cutter
2pc x 1.0mm Probe
1pc x Power Supply Adapter
1pc x USB cable
1pc x Brush
1pc x screwdriver
1pc x 1.5m power cord of US standard(optional)
1pc x proof embryo
1pc x 2mm hexagon bar wrench
1pc x 3mm hexagon bar wrench
1pc x user manual
